Outdoor operation large capacity(different capacities series)energy storage battery

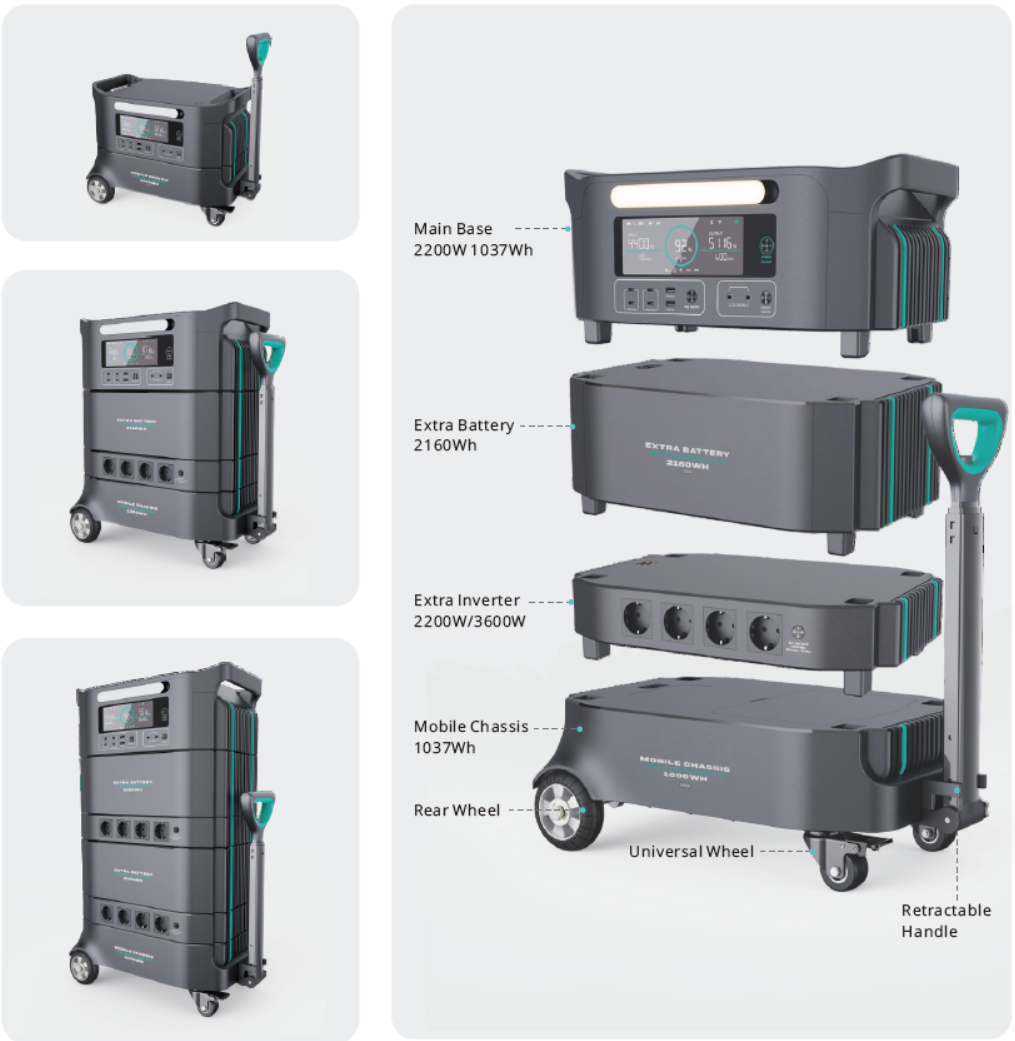

Supports 2074Wh, 4234Wh, 6394Wh, 7517Wh, different capacity combinations

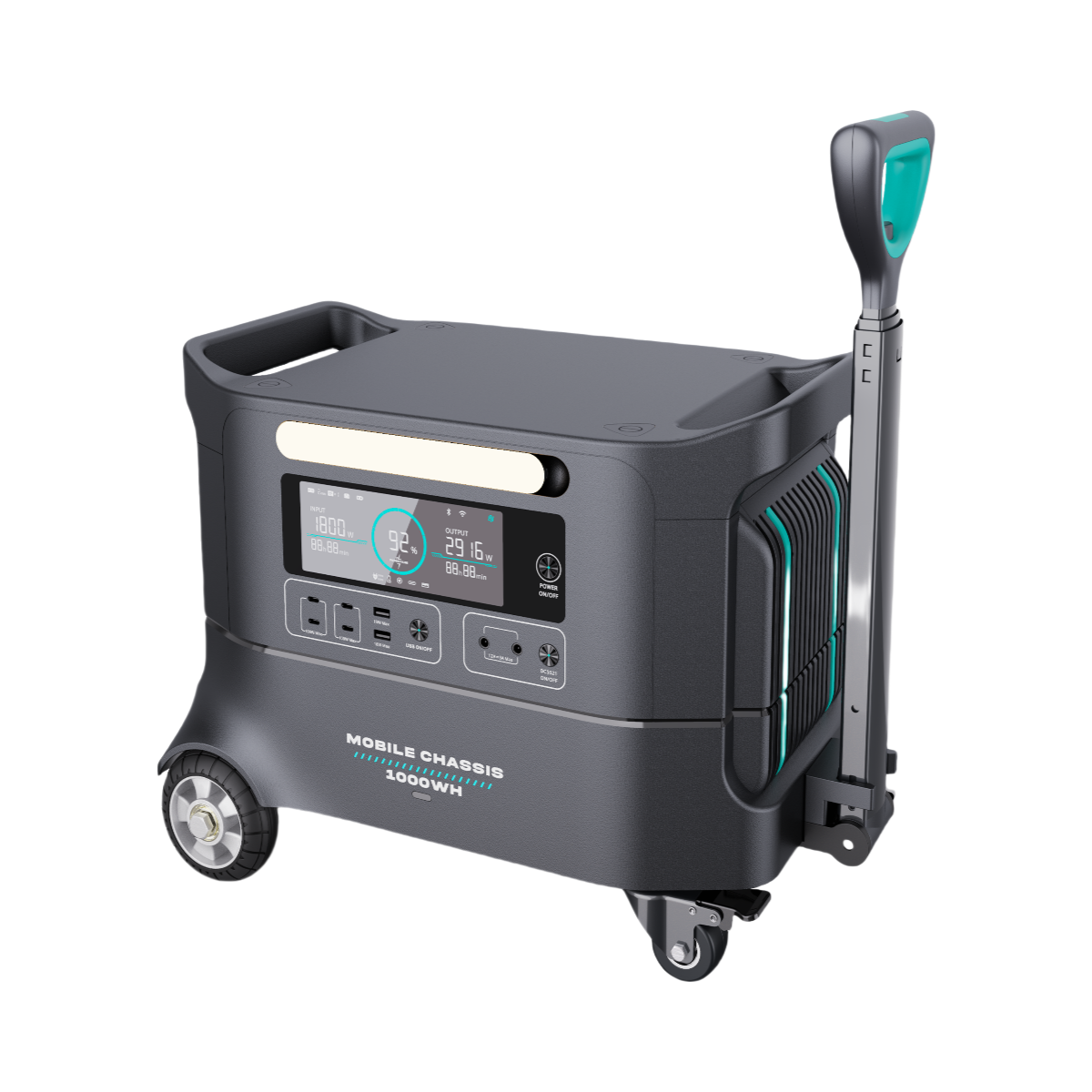

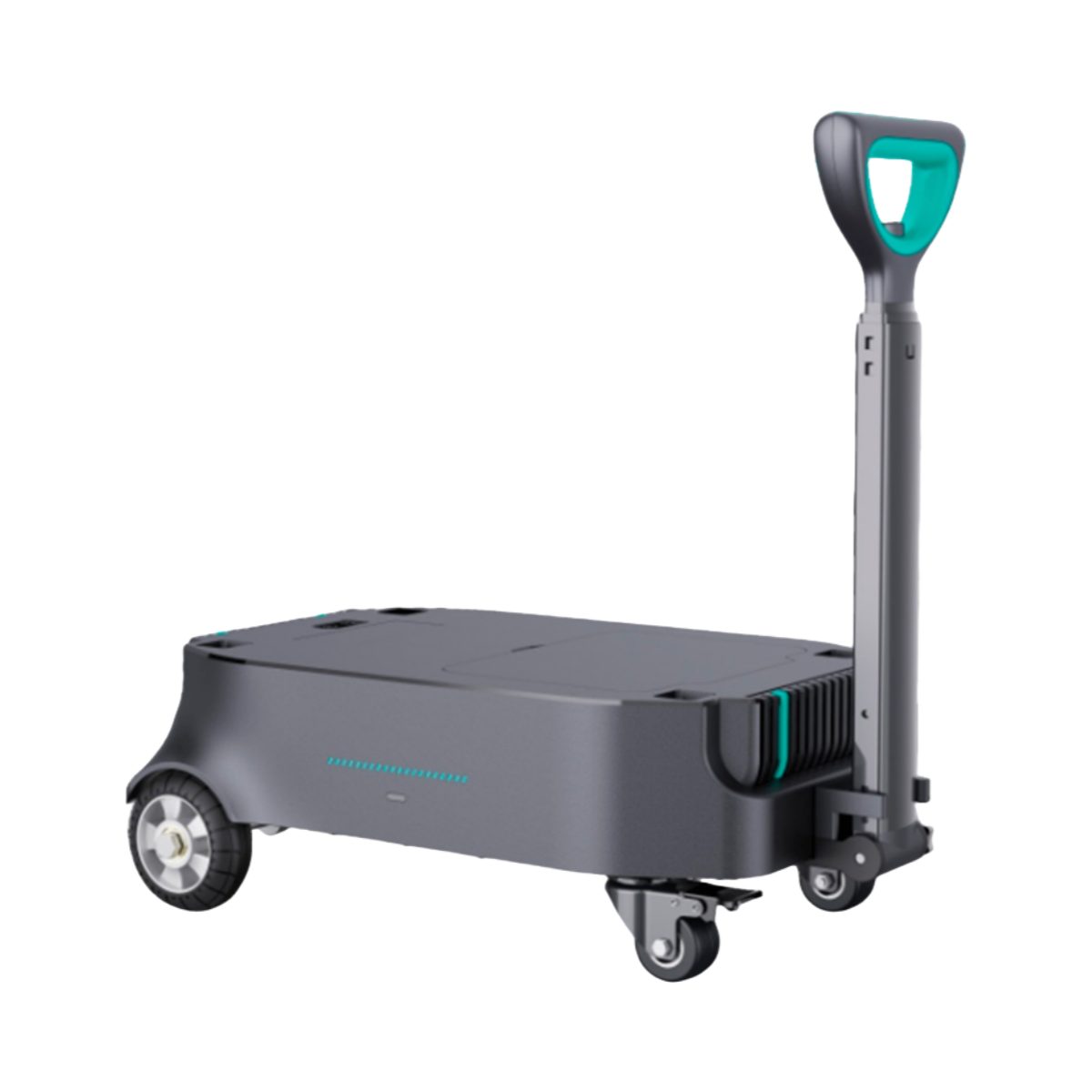

1．Mobile Chassis 1000WH

GENERAL:

Weight: 14kg

Dimension: 465x322x180mm

Capacity: 1037Wh

BATTERY:

1037Wh, 48V, LFP 3,500 Cycles to 80% Capacity

2.  Extra Battery

GENERAL:

Weight: 22kg

Dimension: 465x300x186mm

Capacity: 2160Wh

BATTERY:

2160Wh, 48V LFP, 3,500 Cycles to 80% Capacity

3.  Extra Inverter(2200w)

GENERAL:

Weight:5.0kg

Dimension: 465x300x103 mm

OUTPUT:

AC (×4), 2200W (Surge 4400W)

220-240V (50Hz/60Hz), 10A Max

INPUT:

AC Charging (×1): 220-240V (50Hz/60Hz), 10A Max,

2200W Max

4.  Main Base

GENERAL:

Weight: 16.8kg

Dimension: 480x300x225.3mm

Capacity: 1037Wh

OUTPUT:

AC (×4), 2200W (Surge 4400W)

220-240V (50Hz/60Hz), 10A Max

USB-A Fast Charging (×2): 5V/2.4A, 9V/2A, 12V/1.5A,

18W Max per port, total 36W

USB-C (×4): 5V/3A,9V/3A,12V/3A,15V/3A, 20V/5A,

100W Max per port, total 200W

Car Charger (×1): 12V 10A, 120W Max

DC5521 Output (×2): 12V 3A, total 36W Max

XT60 Output (×1): 12V 30A, total 360W Max

INPUT:

AC Charging (×1): 220-240V (50Hz/60Hz), 10A Max,

2200W Max

XT60 Charging (Solar): 11-60V 20A Max, 1000W Max

BATTERY:

1037Wh, 48V LFP, 3,500 Cycles to 80% Capacity
